Power To The Pedal
Overbuilt But Not Overkill

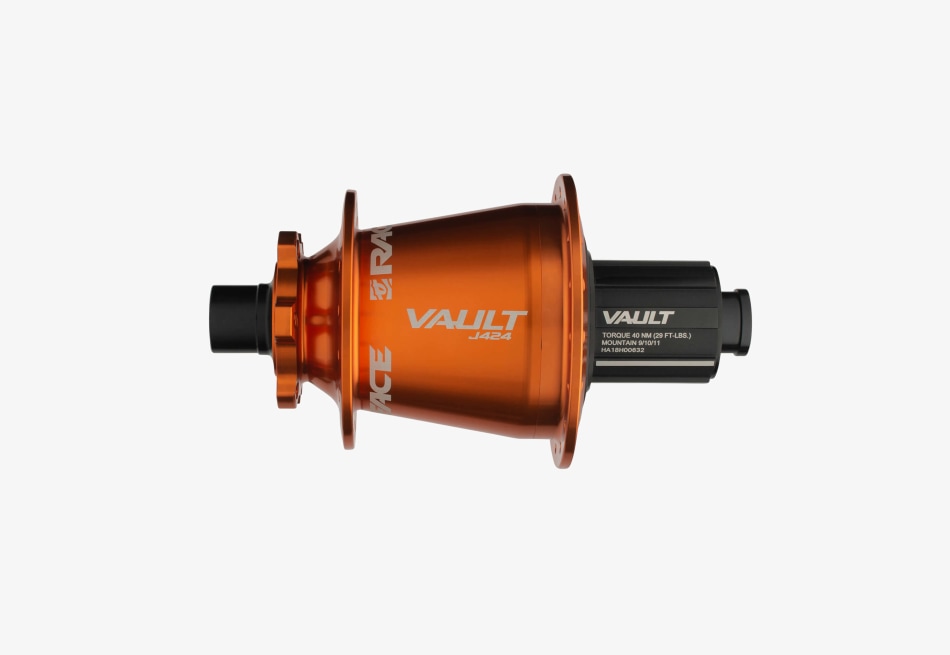

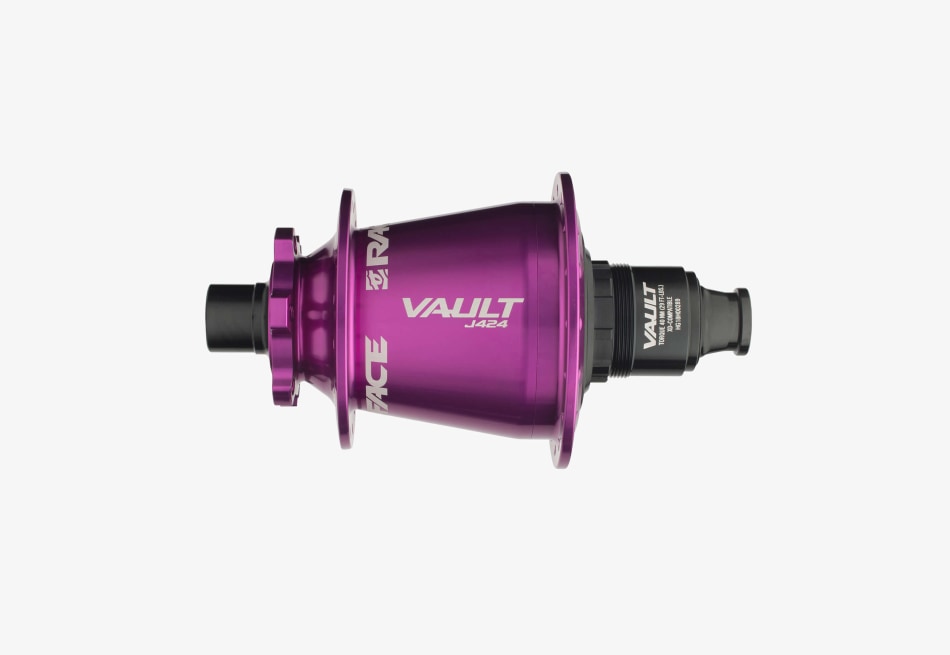

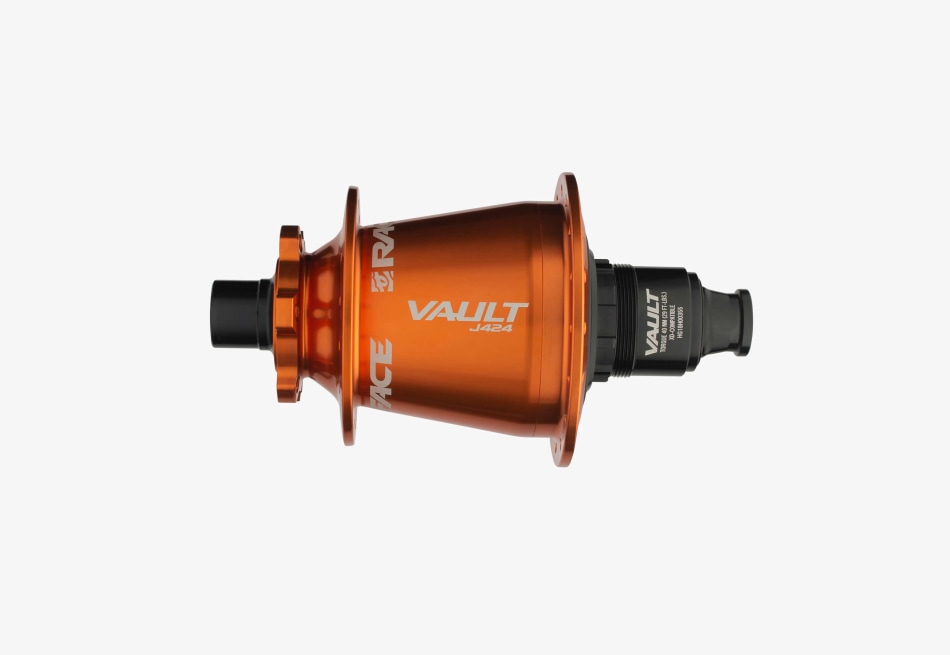

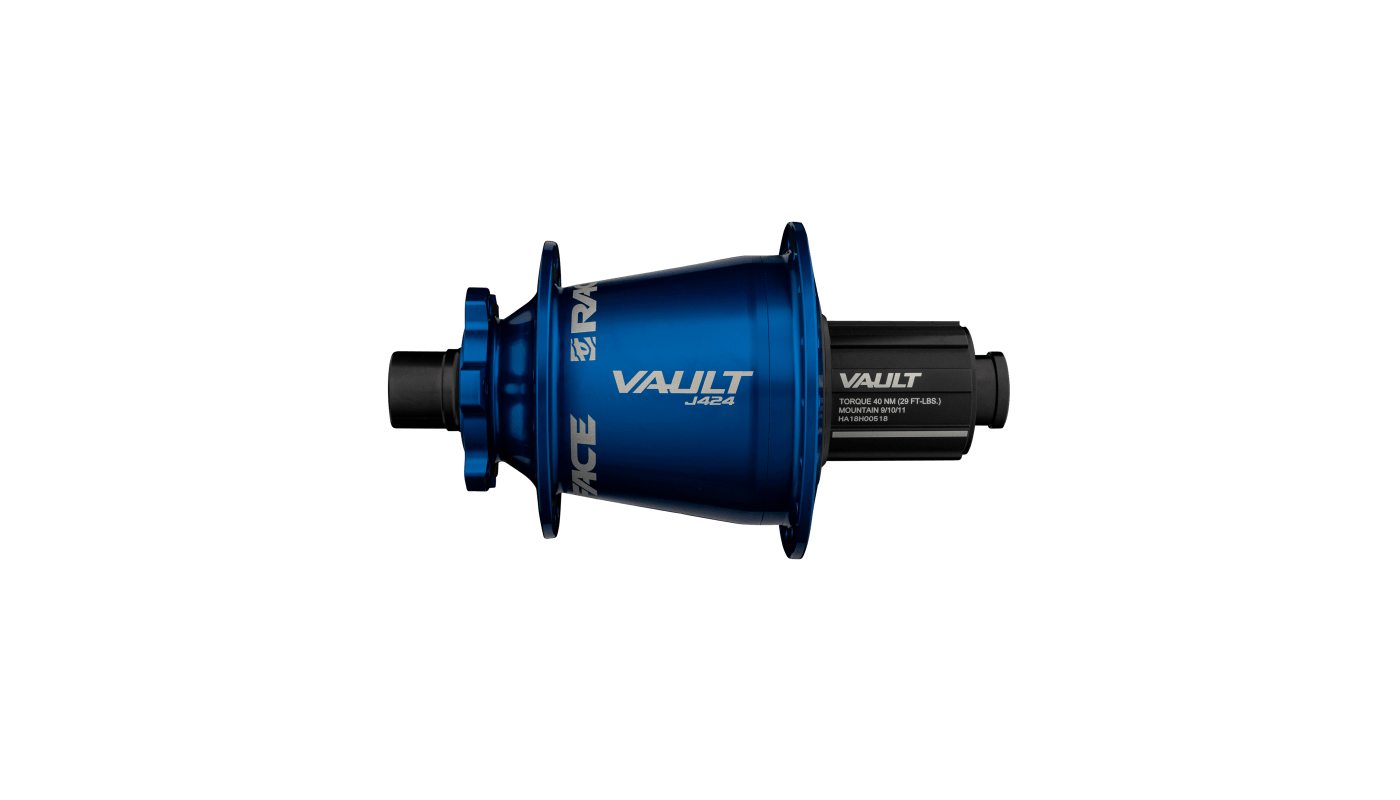

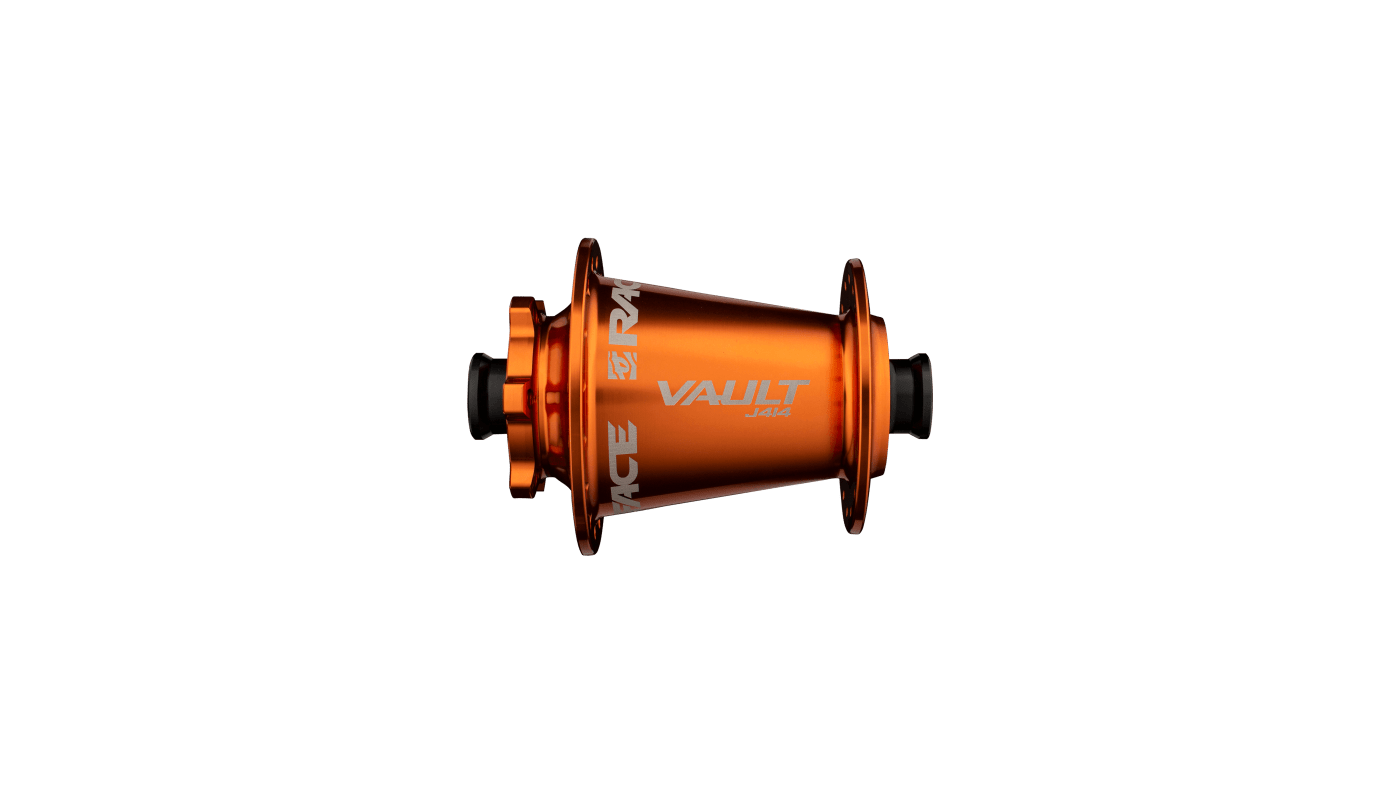

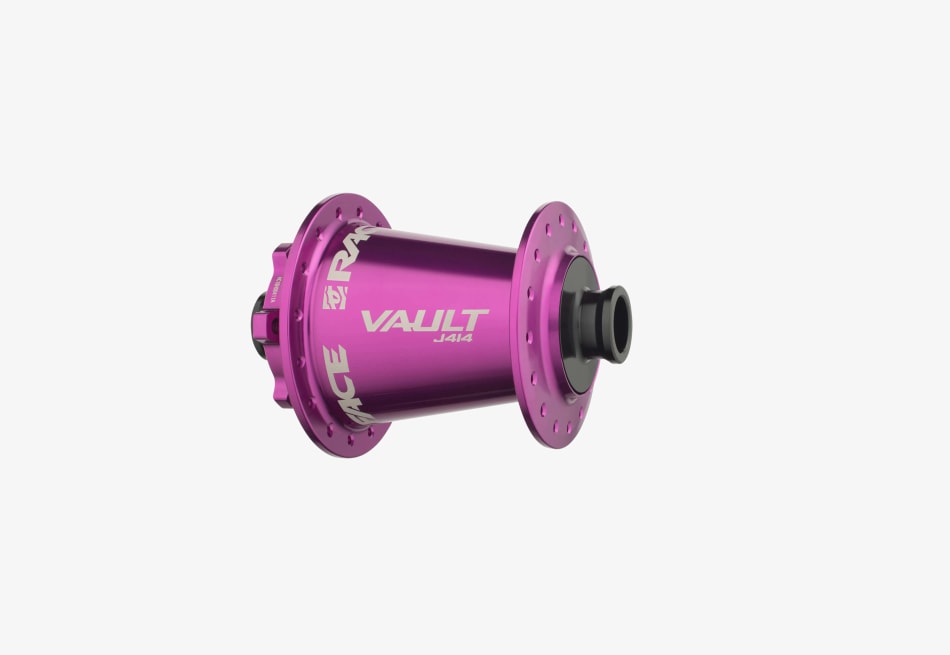

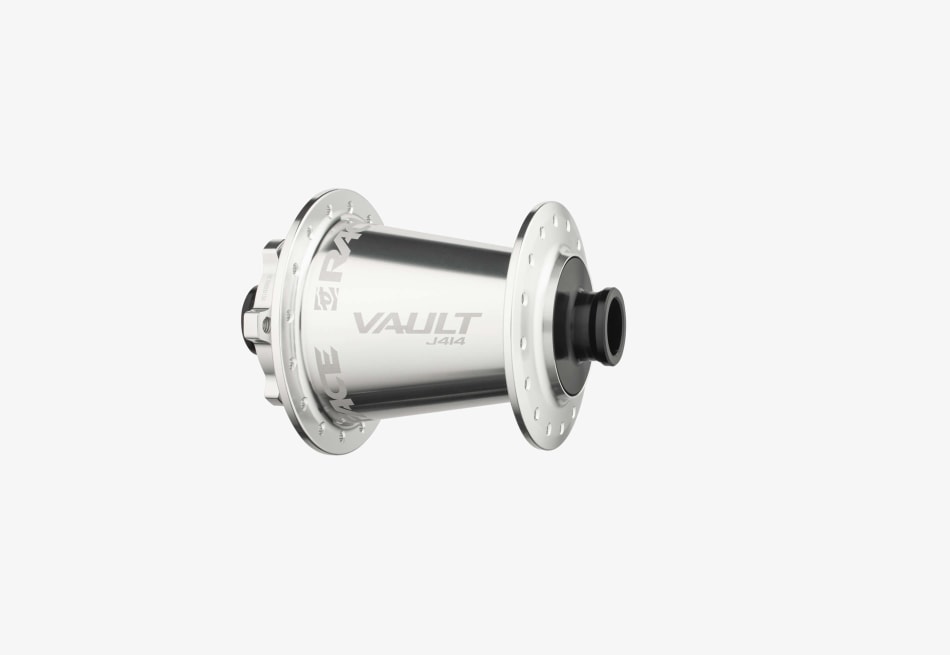

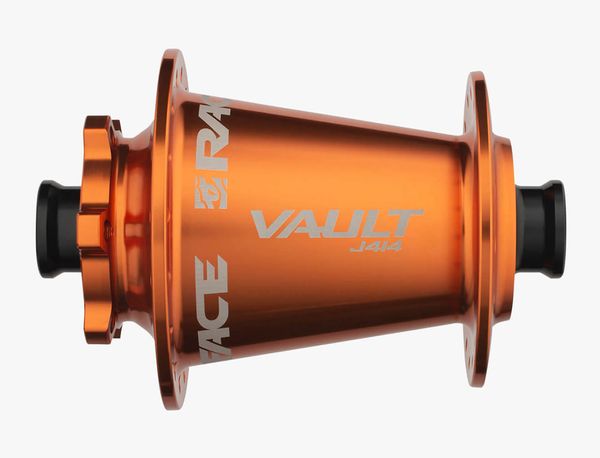

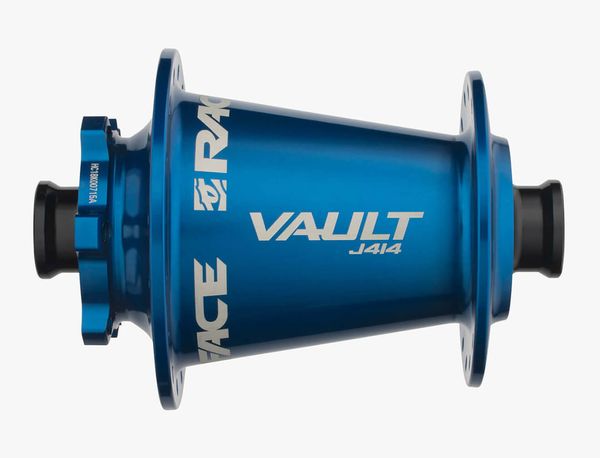

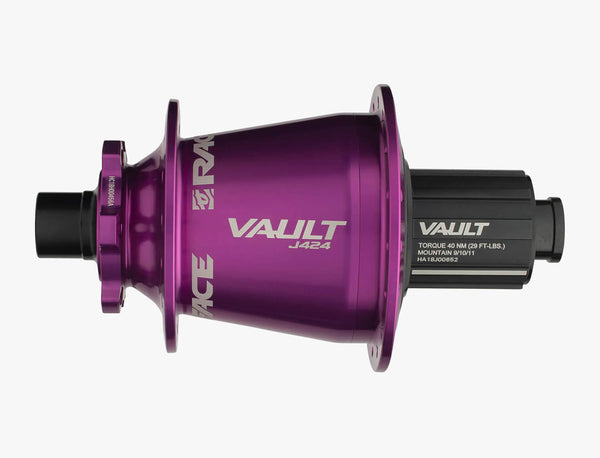

Dream In Color
At The Center Of It All
Cast your eyes upon your new favorite component–the infinitely adaptable, fully tuned-and-dialed hub of choice for your custom wheel build. The Vault has almost instant power transfer for slippery fast speed by way of solid, smart design.

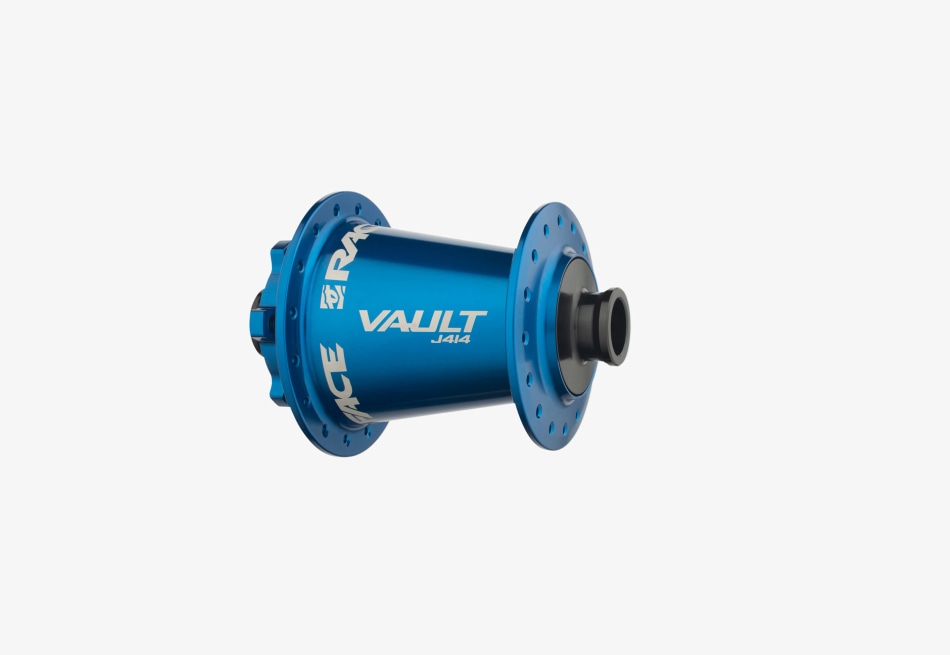

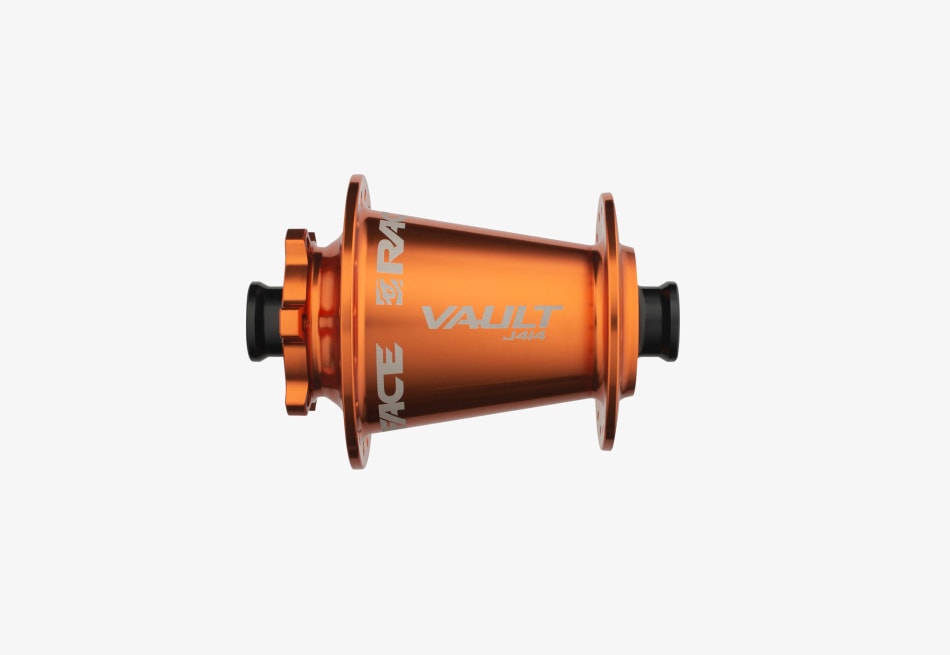

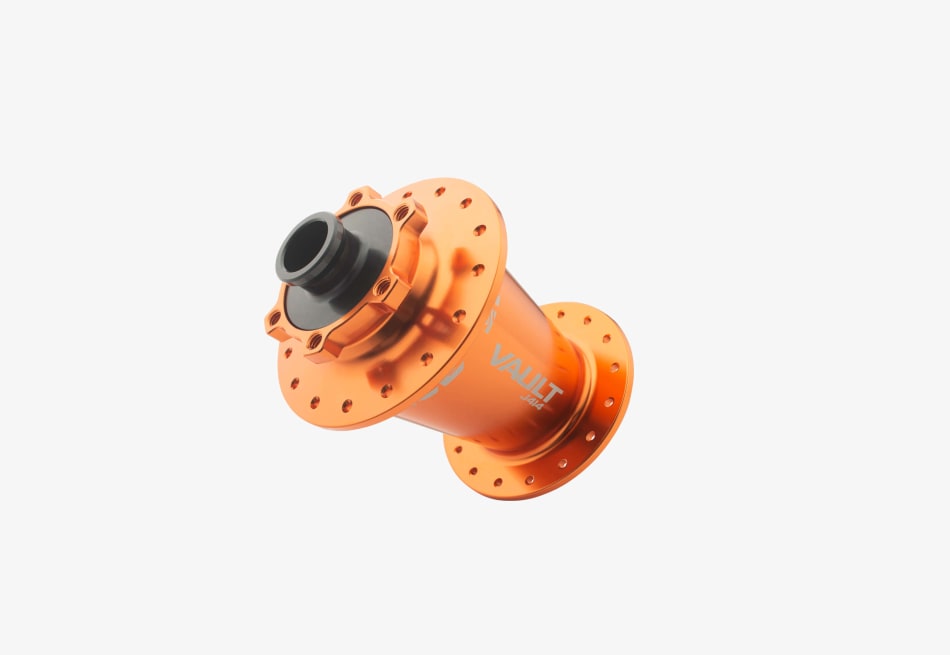

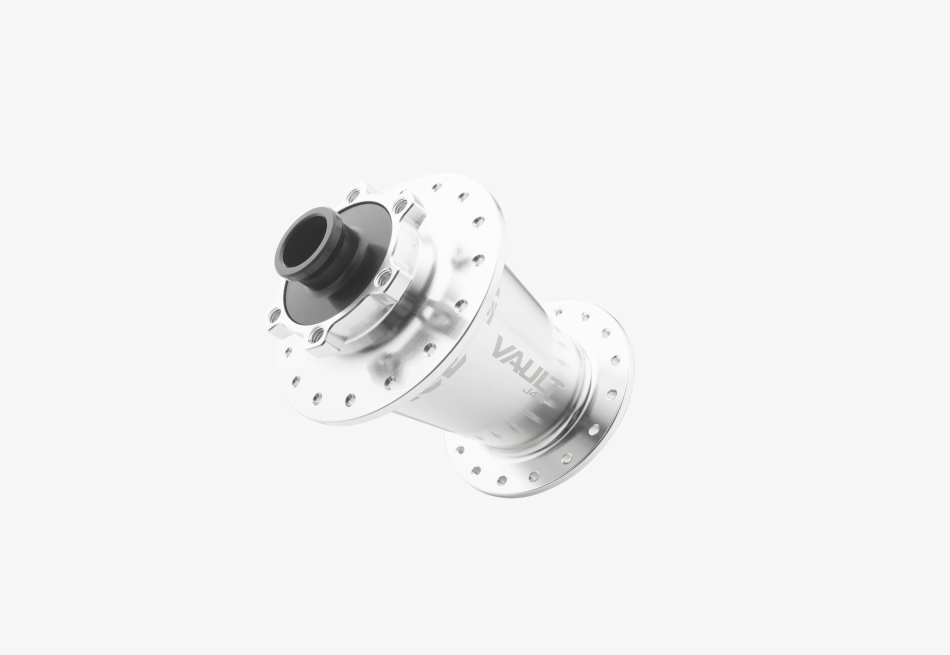

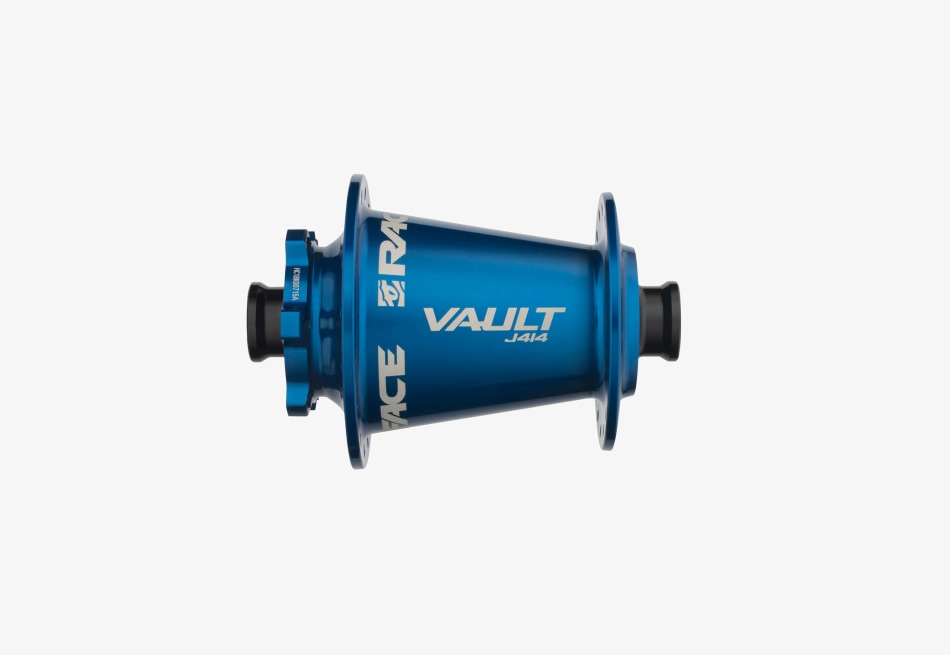

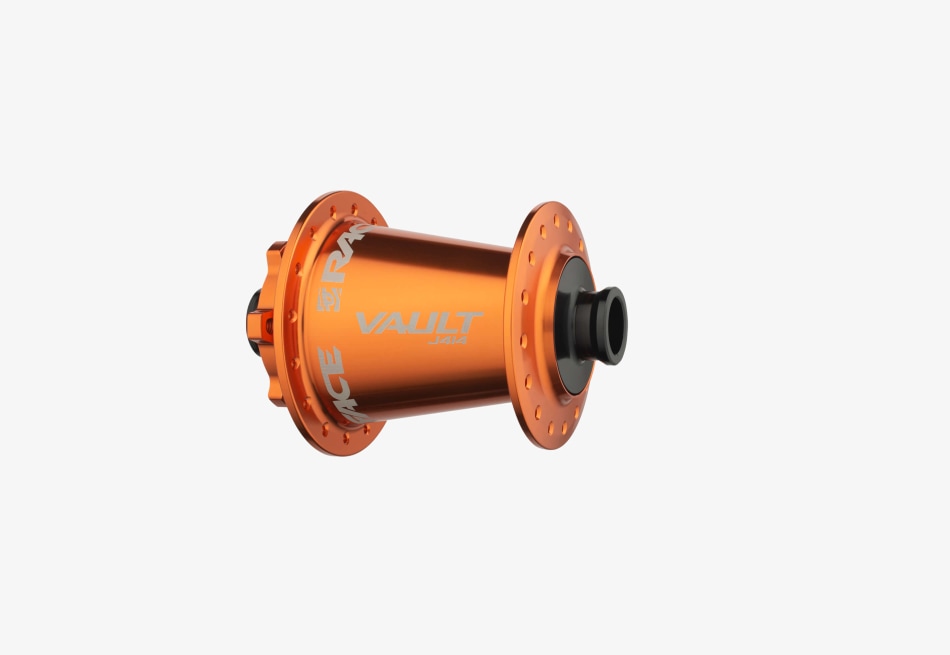

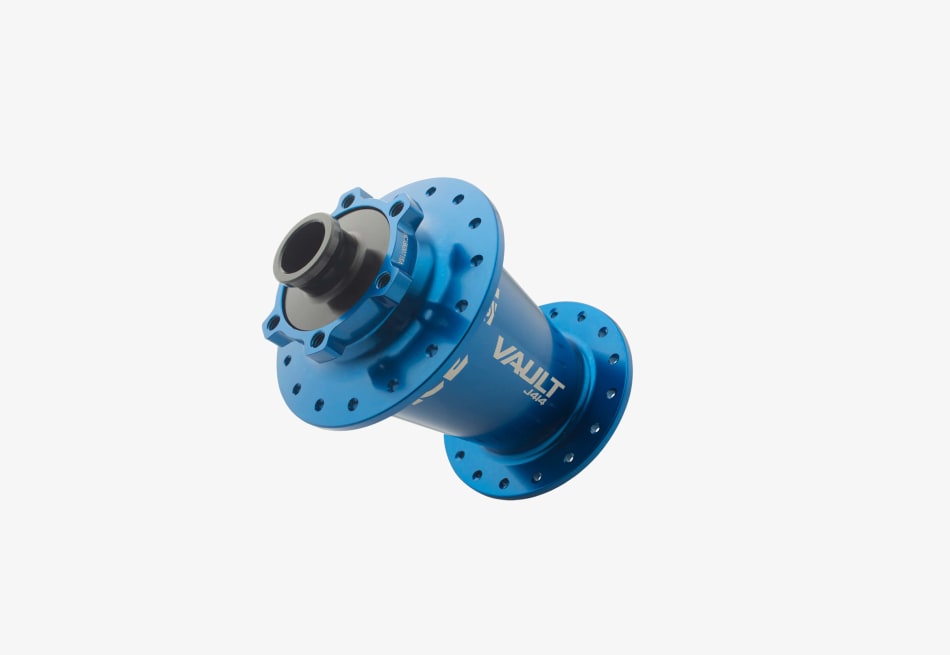

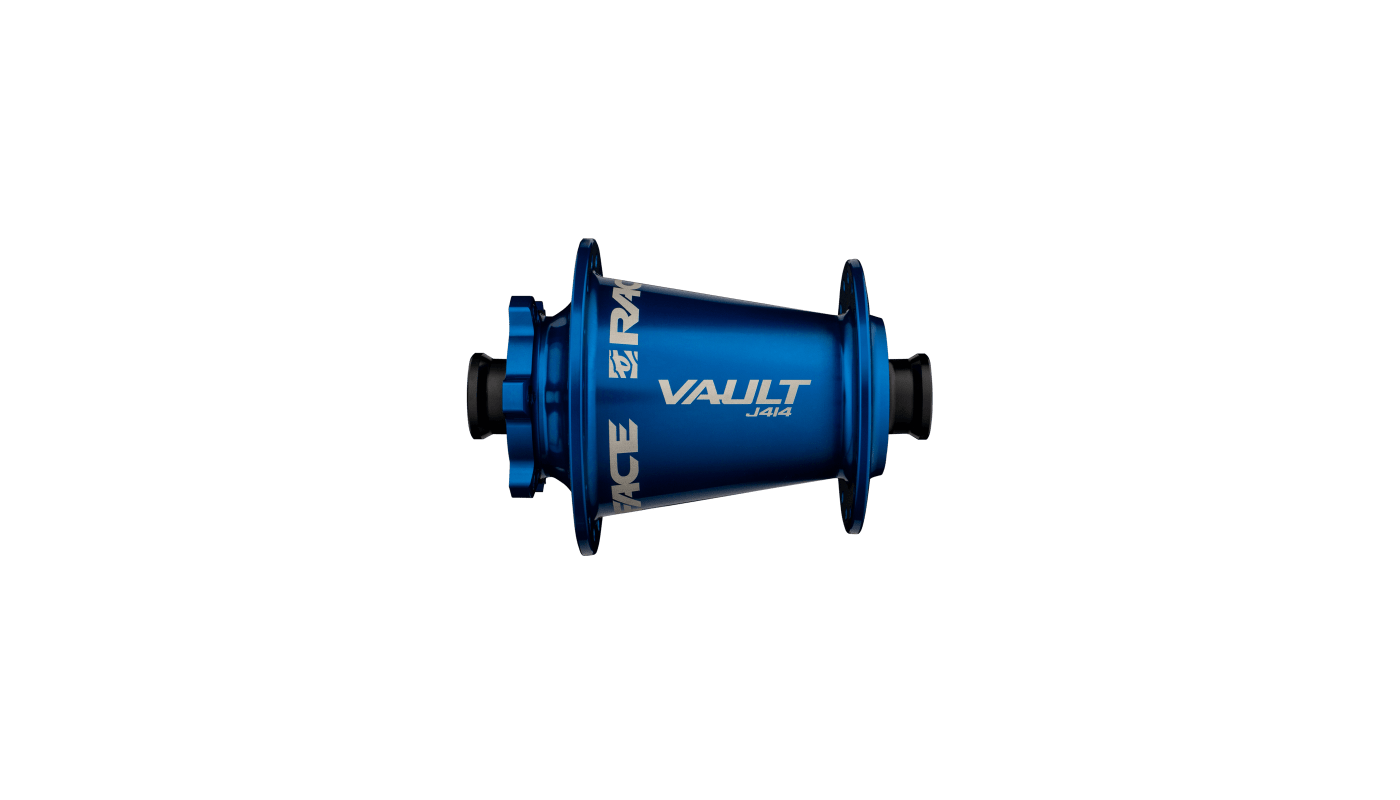

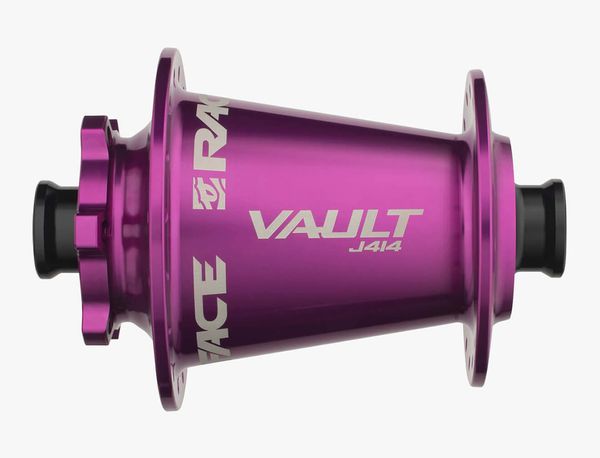

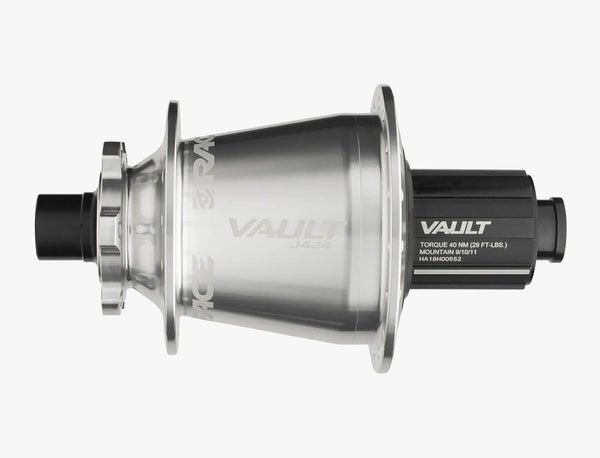

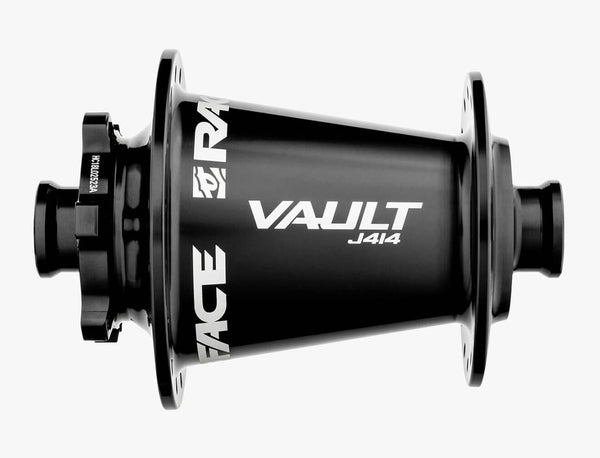

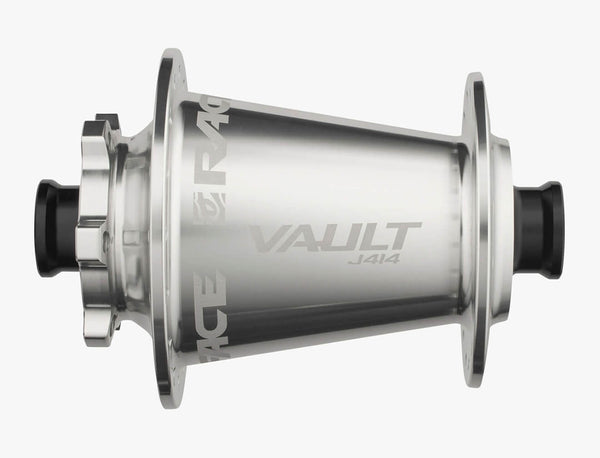

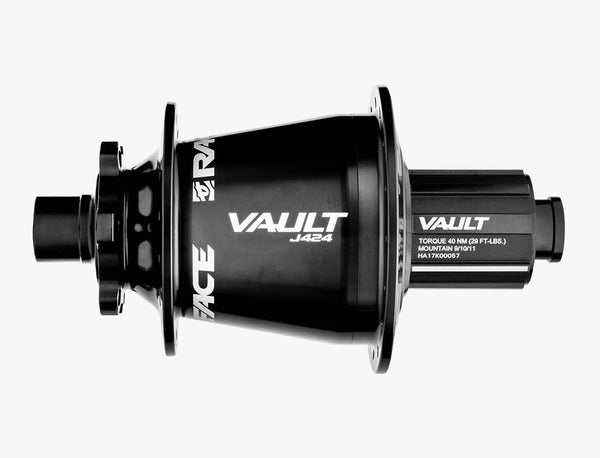

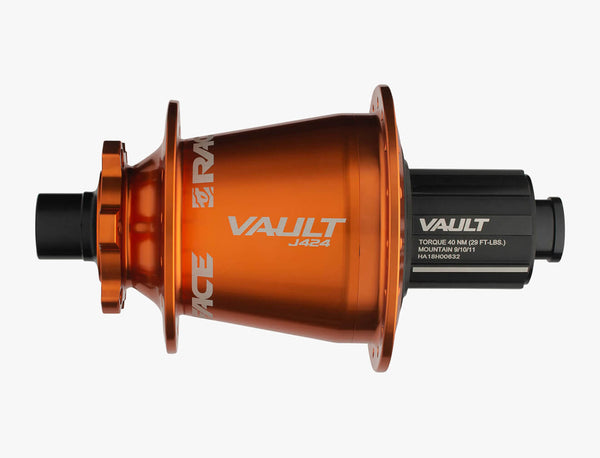

Vault J-Bend Hub - 32H
Specs
| Spoke Count | 32 |
| Weight | 177 g |
| Weight Conditions | Lightest configuration |
| Exploded View | All Models |
Frequently asked questions
Will this hub fit my specific mountain bike axle?

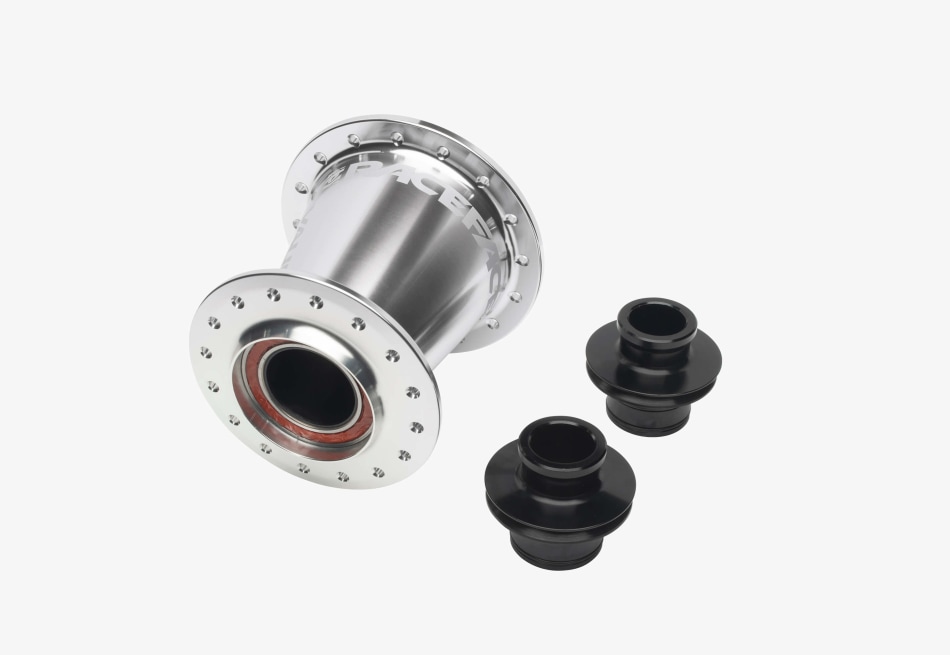

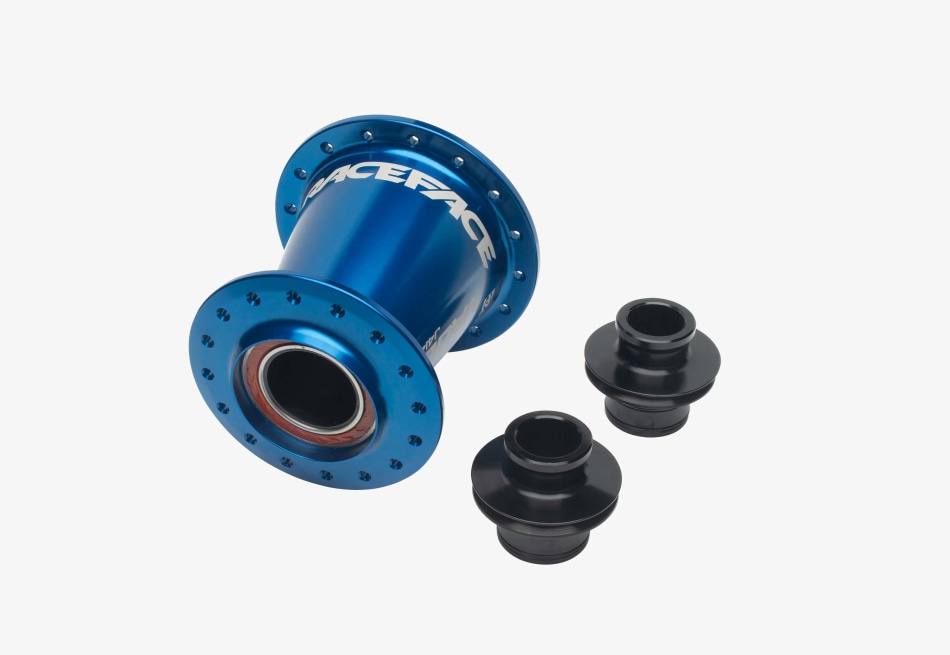

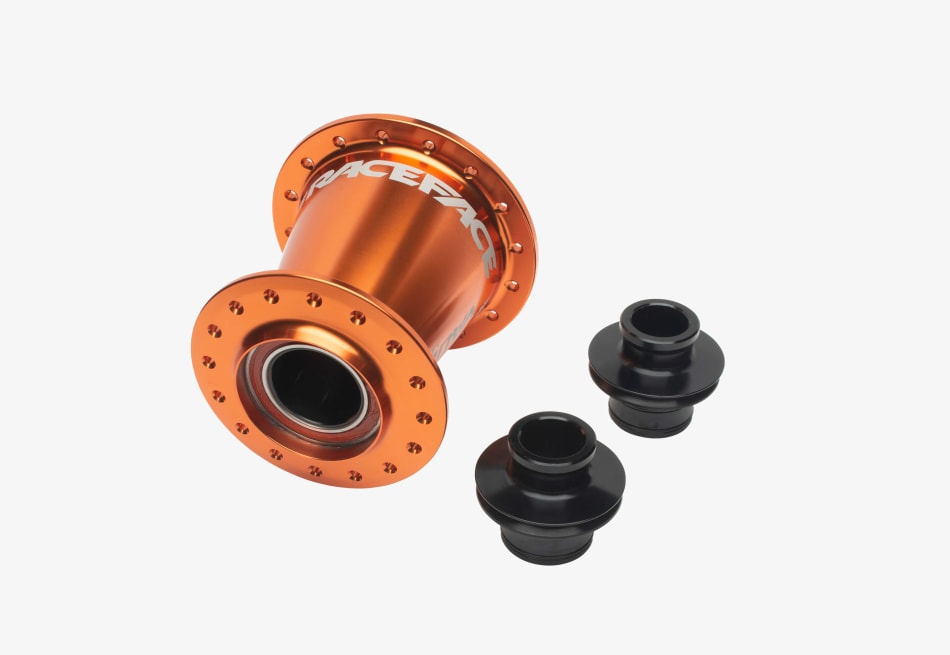

The Vault J-Bend Hub is highly adaptable and supports a wide variety of axle configurations, including:
- Boost standards: 12 x 148 and 15 x 110
- Standard sizes: 12 x 142 and 15 x 100
- DH/Extra Wide: 12 x 150/157
Because of these diverse options, it is compatible with most modern mountain bike frames.
How is the hub built to withstand aggressive trail riding?
The Vault hub is purposefully ‘overbuilt’ to handle high-stress riding. It features:
- An oversized shell designed to maximize lateral stiffness.

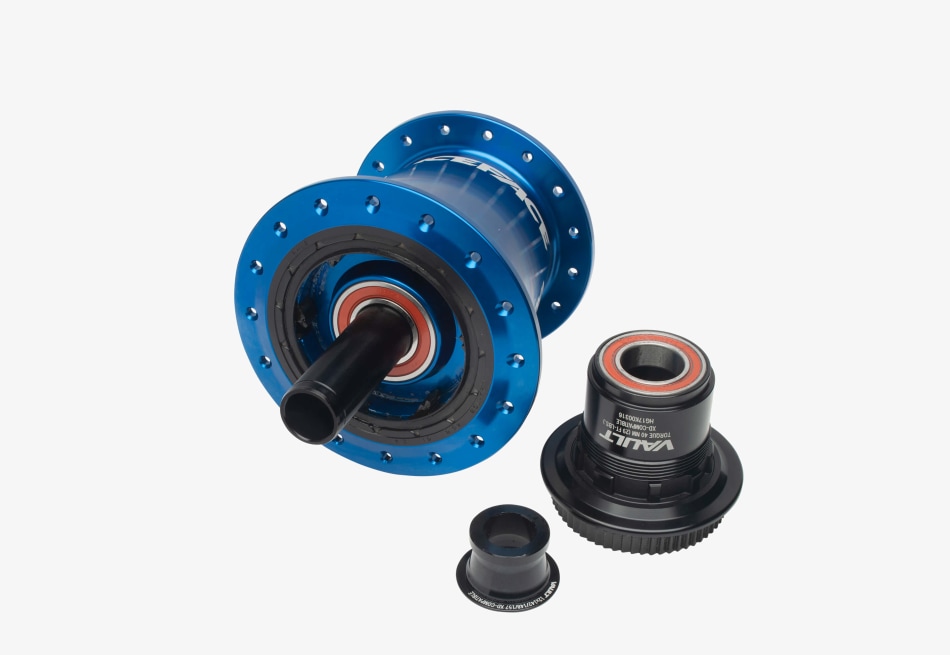

- Large 6902 bearings that provide enhanced longevity and smooth rolling performance even under heavy loads.
Does this hub support different drivetrain systems?

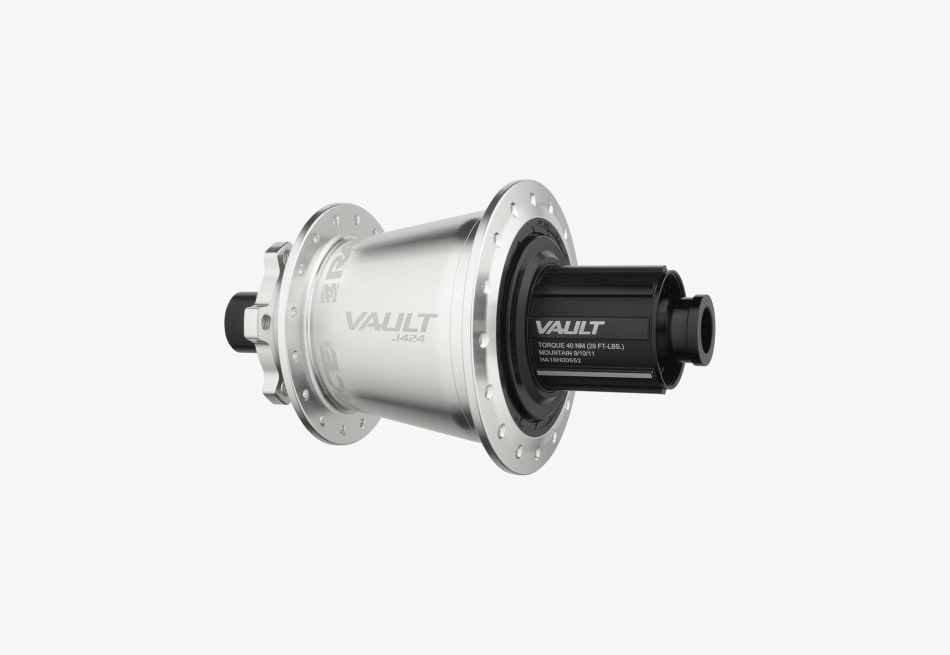

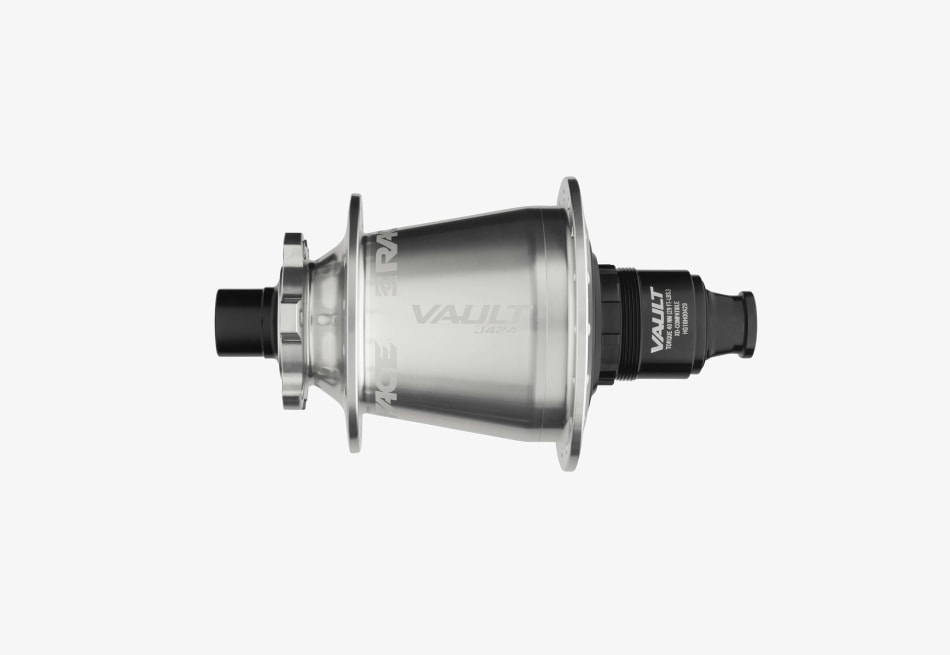

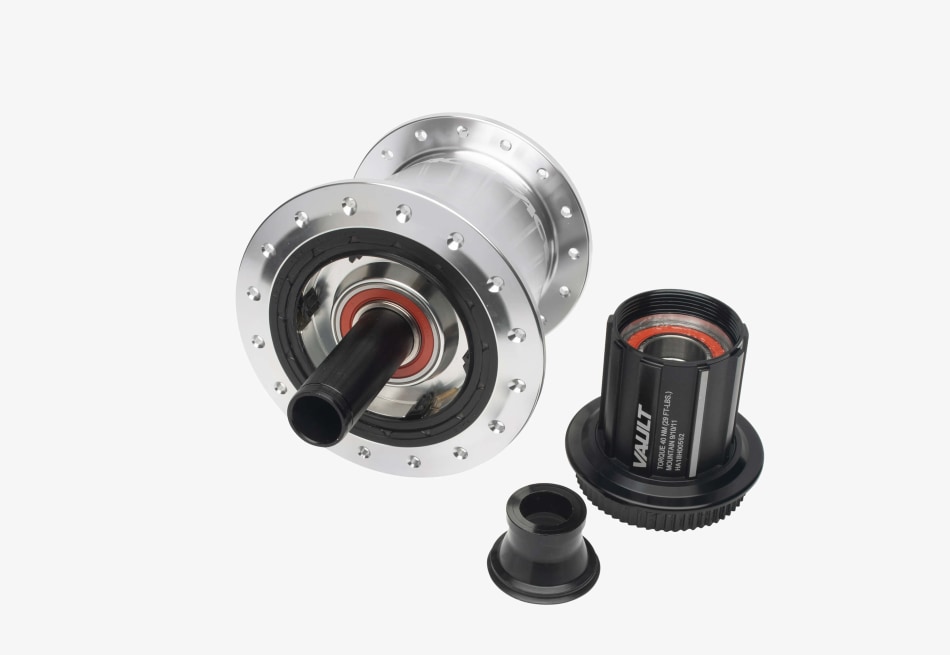

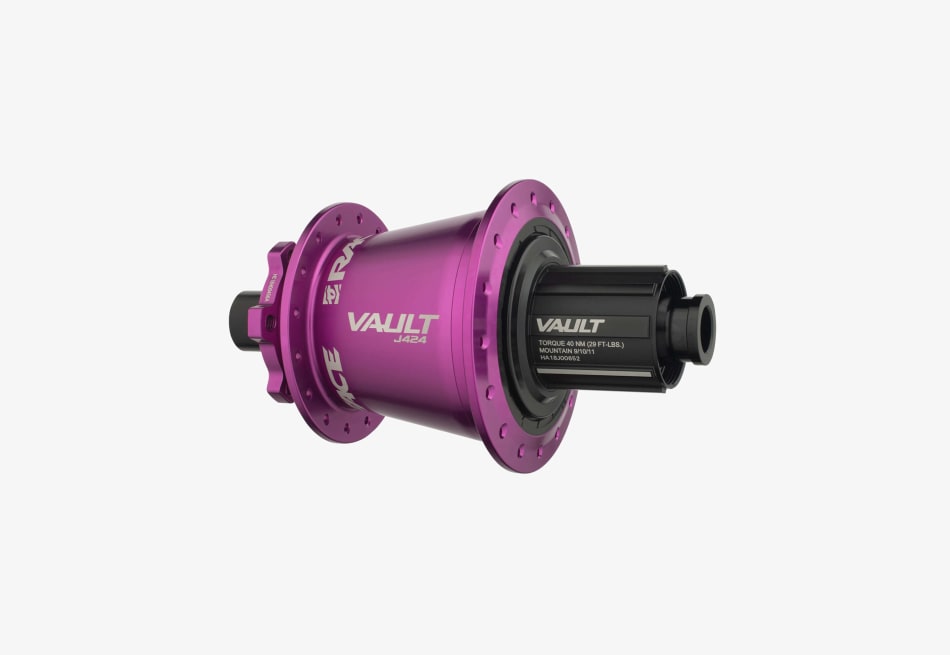

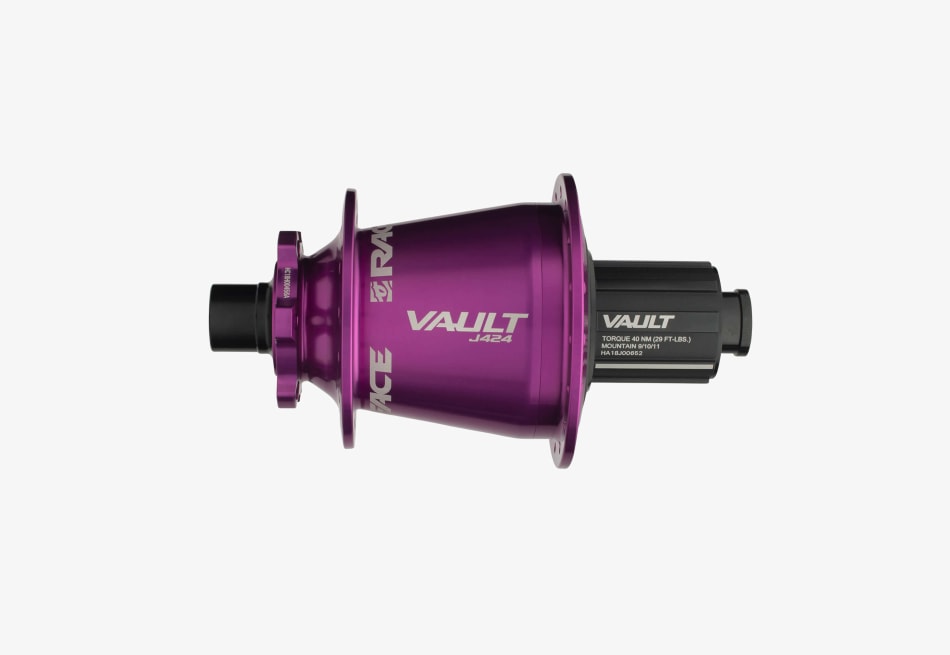

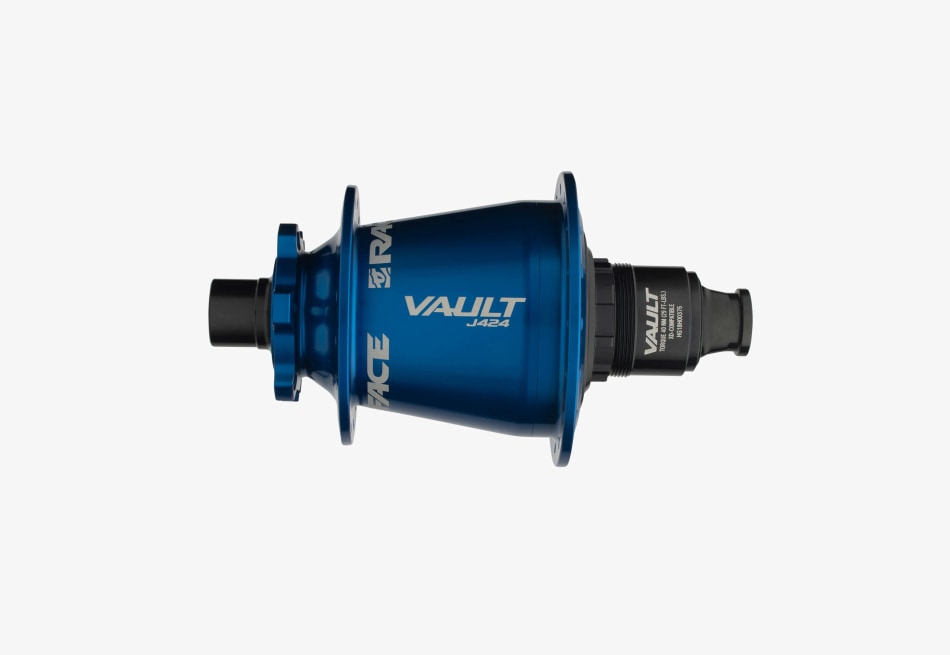

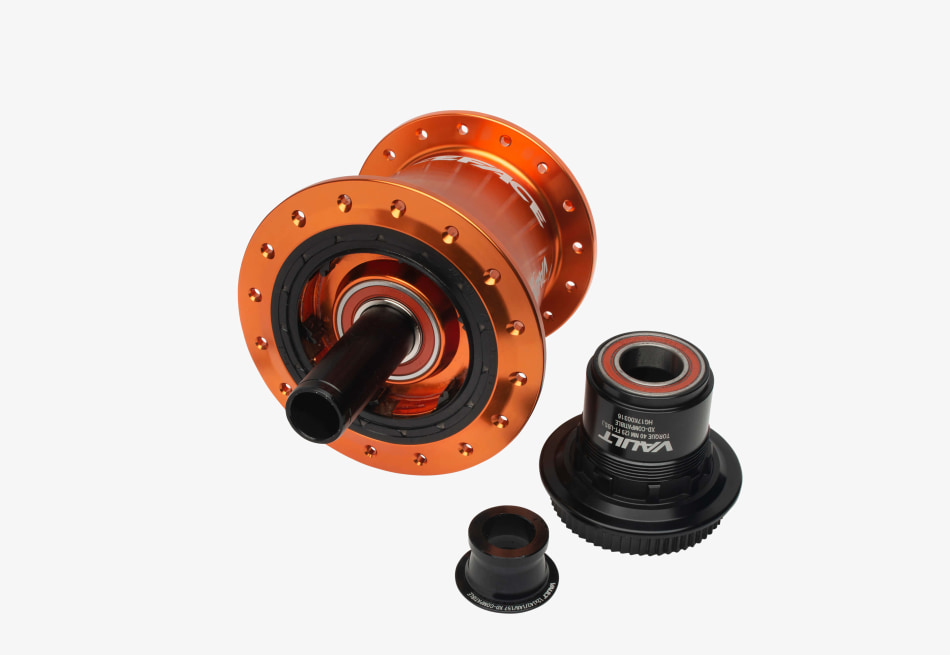

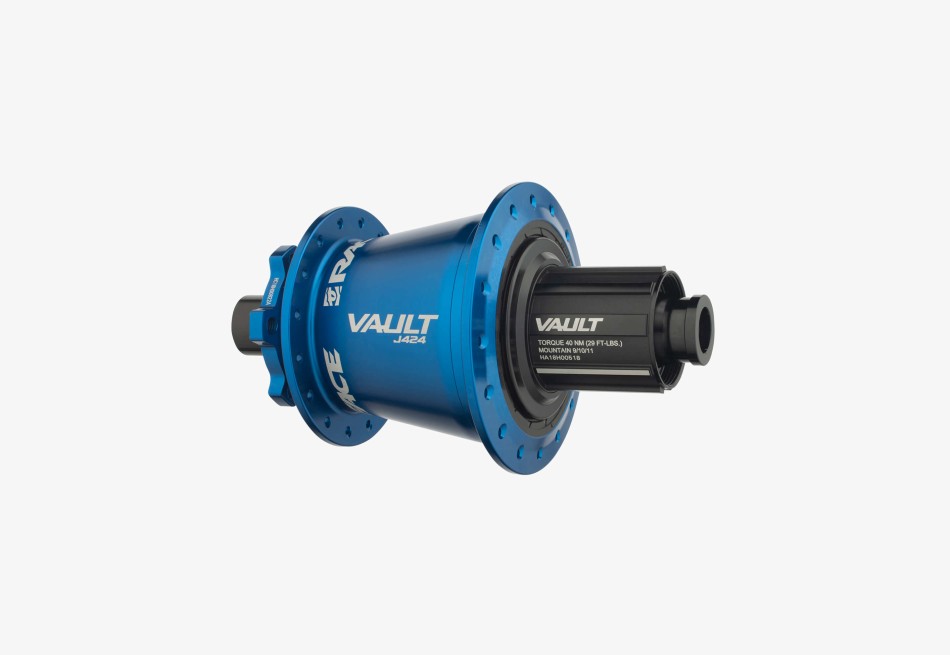

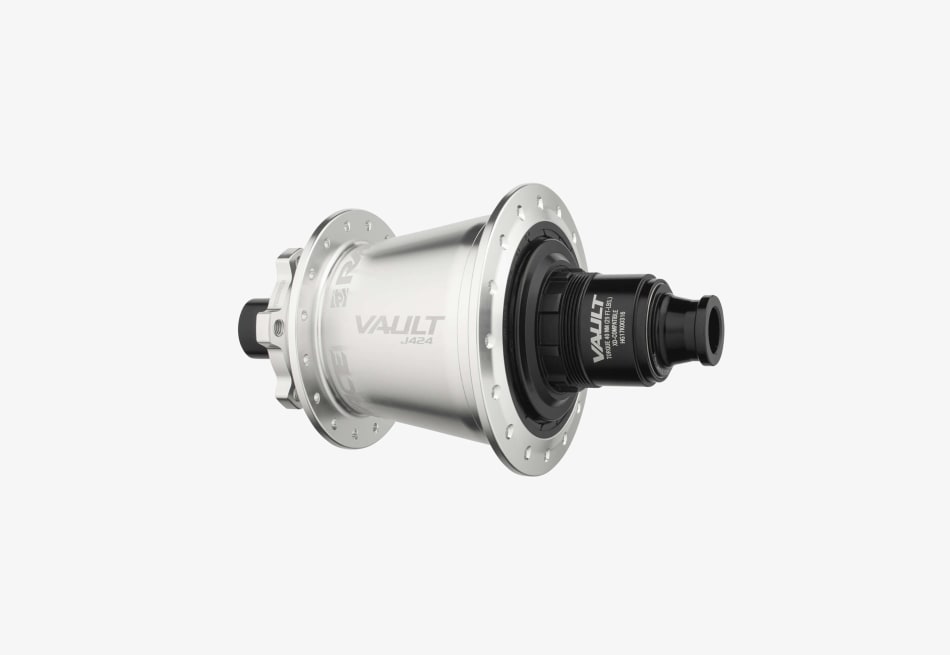

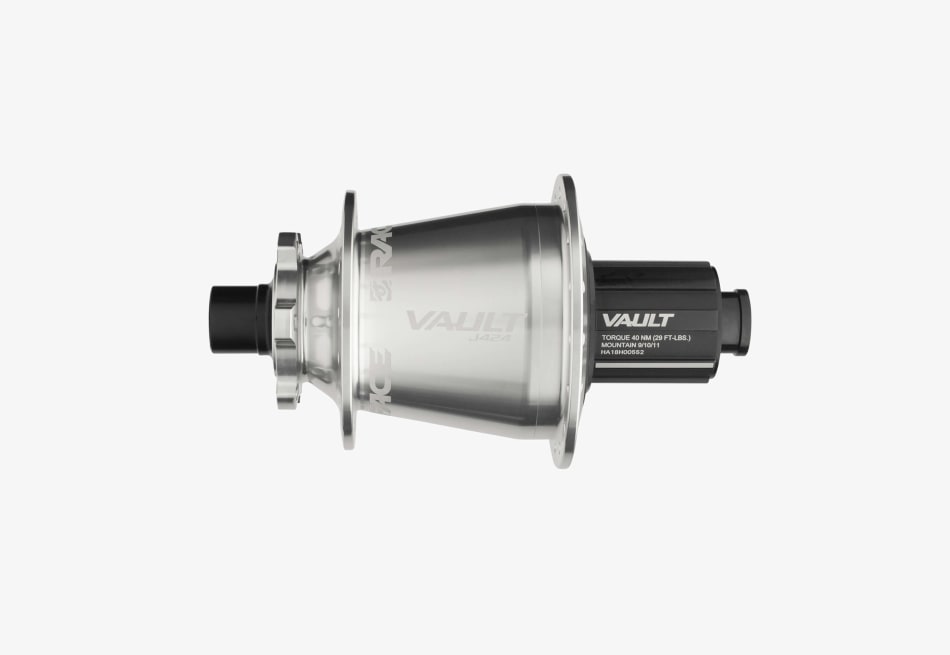

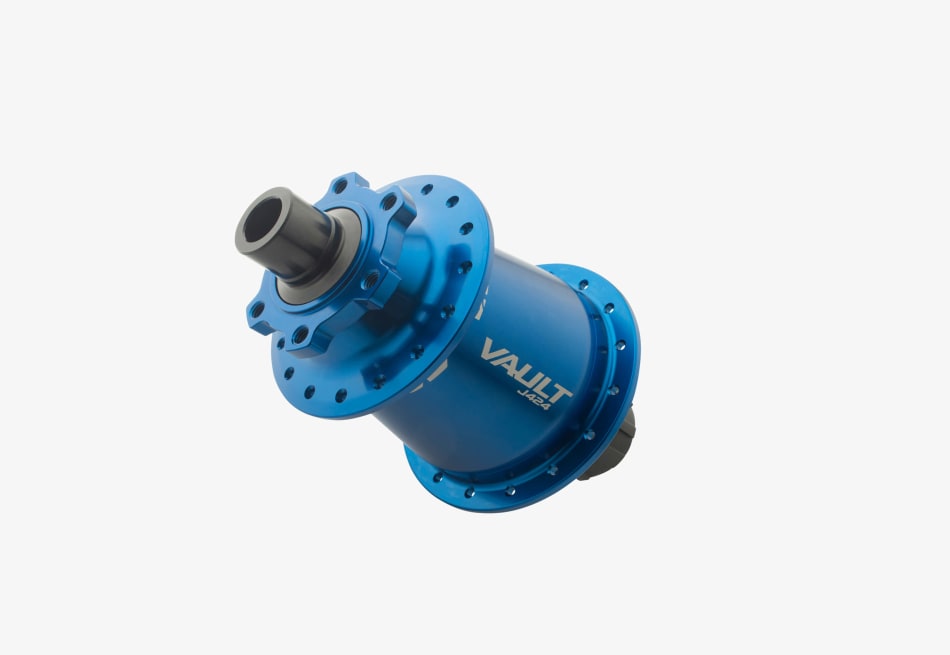

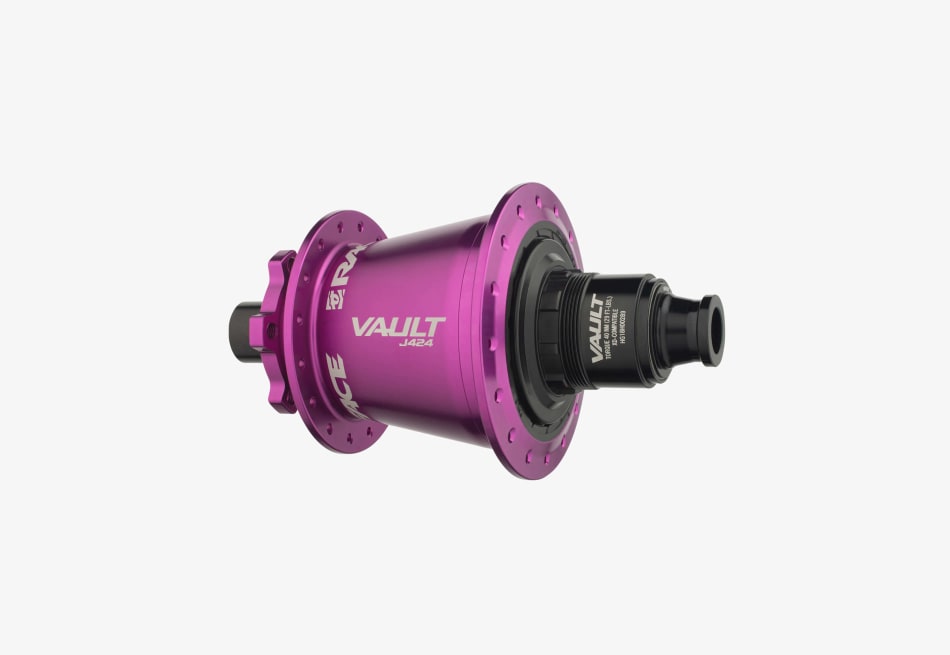

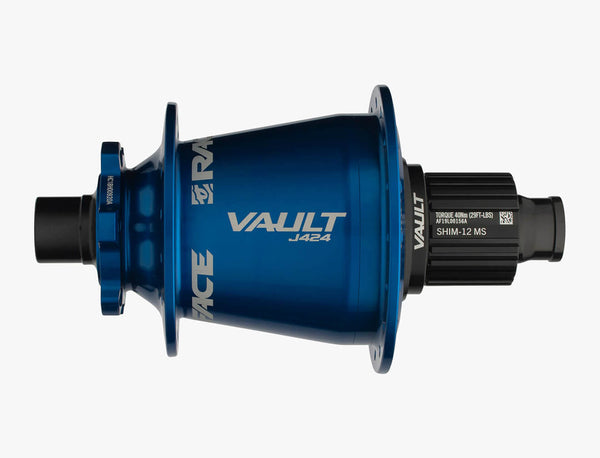

Yes, the Vault J-Bend Hub is designed for high versatility in custom wheel builds. It is compatible with several common drivetrain standards, offering options for HG, XD, and MS (Micro Spline) freehub bodies. When selecting your hub, please verify the specific axle and freehub requirements for your bicycle frame and drivetrain to ensure you choose the correct configuration for your build.
Is the engagement system robust enough for technical trails?
Absolutely. The hub utilizes a sophisticated 6-pawl design (configured in two groups of three) that interacts with a 60-tooth drive ring. This results in 120 points of engagement, providing the near-instantaneous power transfer needed for technical climbs and aggressive trail maneuvers.
How does the construction contribute to wheel stiffness?
The Vault J-Bend Hub is engineered with an oversized hub shell which is specifically designed to maximize overall wheel stiffness and structural stability. This foundation ensures that your custom wheelset remains solid and responsive even under heavy load and during high-speed riding.
Does the hub provide instant power transfer?
Yes, the Vault J-Bend Hub is specifically engineered for nearly instant power transfer, making it ideal for high-performance riding.
This is achieved through a robust, high-engagement system:
- Engagement Points: The hub provides 120 points of engagement.
- Drive Mechanism: It uses a 60-tooth drive ring paired with 6 pawls, which operate in 2 groups of 3.
This configuration ensures virtually instantaneous transfer of power when you pedal, eliminating lag and maximizing responsiveness.
Lifetime Warranty, Crashes Included.
Crashes are part of mountain biking. When they happen, we have your back.
