Energy Redirected
Elevate with Vault
Roll with the Crunches
The Alloy Answer

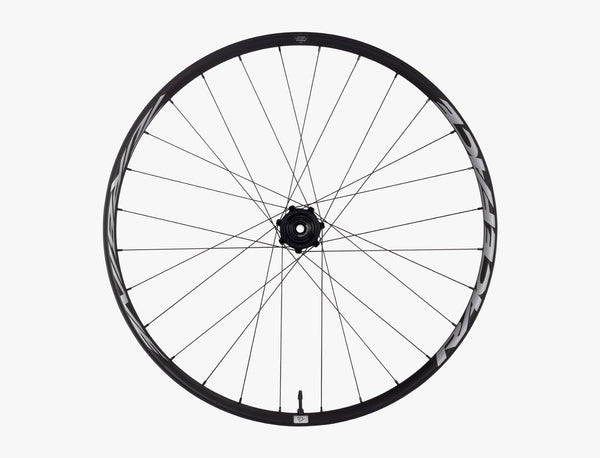

Turbine Wheels
Rider Style
Specs
| Material | Aluminum 6069 |
| Weight | 1766g (27.5" 6-bolt) / 1829g (29" CL) / 1802g (27.5" 6-bolt) / 1865g (29" 6-bolt) |
| Rim Width | 30mm Internal, 35.3mm External |
| Front Hub Model | 15x110 Boost – Vault 415 20x110 Boost – Vault 414 |
| Front Hub Endcap Compatibility | Vault 415 hub – 15x110 Boost (F60100) / 15x110 Boost Torque Cap (F60122) Vault 414 hub – 15x110 Boost (F60056) / 15x110 Boost Torque Cap (F60059) / 20x110 Boost (F60086) |
| Rear Hub Model | 12x148 Boost – Vault 424 12x157 Super Boost – Vault 422 |
| Rear Hub Endcap Compatibility | Vault 424 – 12x148 Boost (F60063) Vault 422 – 12x157 Super Boost (F60063) / 12x150 (F60066) |
| Nipples | Black alloy nipples |
| Spokes | Straight pull, 28 hole, 3x Lacing, 2.0/1.65/2.0 Butting, 4mm Offset |
| Spoke Length 27.5" | Front: 286mm, Rear: 284mm |
| Spoke Length 29" | Front: 305mm, Rear: 303mm |
| Tubeless | Tubeless ready, taped with valve |
| Includes | 5 extra spokes included with front and rear wheels |
| Spare Parts | Replacement Endcaps |
Frequently asked questions
Does the lifetime warranty cover crash damage?
Yes, these wheels are backed by a comprehensive lifetime warranty that explicitly covers crashes. This provides riders with the peace of mind needed to push their limits on technical trails without worrying about the integrity of their wheelset.
Are spare spokes included with these wheels?
Yes, each Turbine Wheel (front and rear) comes with 5 extra spokes included, ensuring you have spares for any trailside repairs or maintenance.
Is the Vault hub reliably sealed against the elements?
Yes, the Vault hub is engineered for maximum reliability in harsh conditions.
It utilizes low-drag labyrinth seals to effectively protect the internal components, including the large diameter 6902 bearings, from dirt, water, and mud. This robust sealing ensures the longevity and smooth operation of the hub, maintaining its super-quick 3-degree engagement for responsive power transfer, even after aggressive riding.
Do these wheels reduce the risk of pinch flats?
Yes, the Turbine Wheel rims are engineered with the Anvil Edge feature specifically to mitigate pinch flats and sidewall tears.
This technology works by dispersing the impact energy across a broader surface, significantly reducing the likelihood of sharp tire compression that often leads to pinch flats and sidewall damage.
Do the rims offer optimal tire fit?
Yes, the Turbine Wheels feature a 30mm internal rim width, which is designed to provide optimal tire fit and a stable profile. This contributes to enhanced traction and overall ride performance.
Does the Vault hub offer fast engagement?
Yes, the Turbine Wheels feature a Vault hub with a super-quick 3-degree engagement. This design ensures exceptionally fast power transfer, providing immediate responsiveness for aggressive riding and quick accelerations.
For enhanced durability and reliability in harsh trail conditions, the Vault hub is also equipped with large diameter 6902 bearings and low-drag labyrinth seals.
Lifetime Warranty, Crashes Included.
Crashes are part of mountain biking. When they happen, we have your back.
