Trusted to take the big(ger) hits.
Lace up for fight night.
Comfort and control. Now e-optimized.
Whether you ride with the heftier load of a full-power eMTB, or just need the burliest wheels without losing compliance, Turbine eMTB wheels will stand up to relentless punishment while giving you the best ride feel possible. Just send it and forget about it. Turbine takes care of the rest.

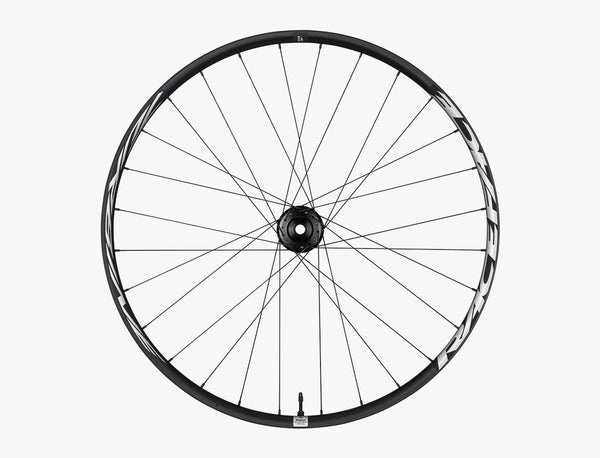

Turbine eMTB Wheels
Rider Style
Specs
| Material | 6069 Aluminum |
| Weight | 2083g (27.5”), 2185g (29") , Wheelset without tape or valves |
| Rim Width | 30mm Internal, 35.5 External |
| Front Hub Model | 15x110 Boost – Vault J414 20x110 Boost – Vault J414 |
| Front Hub Endcaps | 115x110 Boost (F60056) / 15x110 Boost Torque Cap (F60059) / 20x110 Boost (F60086) |
| Rear Hub Model | 12x148 Boost – Vault J424 12x157 Super Boost – Vault J422 |
| Rear Hub Endcap Compatibility | Vault 424 – 12x148 Boost (F60063) Vault 422 – 12x157 Super Boost (F60063) / 12x150 (F60066) |
| Nipples | Black brass nipples |
| Spokes | J-Bend, 28 hole front, 32 hole rear, 3x Lacing, 2.0/1.7 Butting Front, 2.0/1.8 Butting Rear |
| Spoke Length 27.5" | Front: 278mm, Rear: 268mm (Drive side) & 271mm (Non-drive) |
| Spoke Length 29" | Front: 296mm, Rear: 288mm (Drive side) & 290mm (Non-drive) |
| Tubeless | Tubeless ready, taped with valves |
| System Weight Rating | 150 kg (330 lbs) |
| eMTB Usage Rating | Maximum drive assist torque 130 Nm |
| Spare Parts | Replacement Endcaps |
Frequently asked questions
Are these wheels tubeless ready?
Absolutely! The Turbine eMTB wheels come tubeless ready, pre-taped with valves included for easy setup and enhanced performance.
What is the maximum rider system weight?
These wheels have a system weight rating of 150 kg (330 lbs), accommodating a wide range of riders and gear.
Are the spokes robust enough for eMTB use?
Yes, they feature larger gauge Sapim J-bend spokes, with 28 holes in the front and 32 holes in the back, ensuring exceptional strength and torque resistance for eMTB demands.
What is the maximum torque these wheels can handle?
These Turbine eMTB Wheels are engineered to handle a maximum drive assist torque of 130 Nm, making them exceptionally robust for powerful e-bikes.
Are these wheels compatible with my specific axle standard?
Yes, the Turbine eMTB wheels are designed to be highly versatile. They are available in a variety of configurations, including:
- Boost: 15x110mm front and 12x148mm rear.
- Super Boost: 12x157mm rear.
- Front Axle Options: Also available in 20x110mm Boost.
- Driver Bodies: Rear options cover Microspline, XD, and HG standards to ensure compatibility with most major drivetrain systems.
How do the front and rear wheels differ in construction?
To provide the best possible ride, the wheels are built with different priorities:
- Front Wheel: Engineered for increased compliance, helping to absorb trail chatter and improve rider comfort over technical terrain.
- Rear Wheel: Specifically reinforced to handle the intense, high-torque demands of aggressive eMTB riding and provide maximum durability against heavy impacts.
Lifetime Warranty, Crashes Included.
Crashes are part of mountain biking. When they happen, we have your back.
